Installing in Air-Gapped Ubuntu Environments

This guide provides a comprehensive procedure for deploying Capacity Private Cloud in isolated networks without external internet access. The installation uses a two-server approach: an online system for downloading components and an offline system for production deployment.

Scope of Installation

This procedure covers installing the following components in an isolated network:

• Runtimes & Orchestration: Docker, Containerd, and Kubernetes
• Networking & Service Mesh: Calico, Linkerd, and Ingress-nginx
• Package Management: Helm
• Infrastructure Services: Docker Private Registry, MongoDB, PostgreSQL, RabbitMQ, and Redis
• Platform Stack: Capacity Private Cloud services, MRCP-API, and MRCP-Client

Environment Requirements

This installation requires a two-server approach:

1. Online Server: A Linux system connected to the internet to download and stage all required assets.
2. Offline Server: A secured Linux system with no external network access where the production environment is installed.

While this guide is compatible with Red Hat or Ubuntu, the examples are based on Ubuntu 24.04.4 LTS.

Server Information

Online Server Preparation

System Prerequisites

Kubernetes requires specific system settings to manage container networking and memory efficiently.

Disable Swap Space

sudo swapoff -a
sudo sed -i '/swap/ s/^\(.*\)$/#\1/g' /etc/fstab

Configure Kernel Modules

The following modules are required for the Kubernetes pod network (Calico) to function correctly.

sudo tee /etc/modules-load.d/k8s.conf <<EOF
ip_tables
overlay
br_netfilter
EOF

sudo modprobe ip_tables
sudo modprobe overlay
sudo modprobe br_netfilter

Network & Security Settings

Adjust the system's network filtering and disable the firewall to allow inter-pod communication within the cluster.

# Enable bridged traffic and IP forwarding
sudo tee /etc/sysctl.d/k8s.conf <<EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
EOF

# Apply sysctl settings without reboot
sudo sysctl --system

# Disable Firewall and AppArmor
sudo systemctl stop ufw
sudo systemctl disable ufw
sudo systemctl stop apparmor
sudo systemctl disable apparmor

Online Asset Staging

Docker and Containerd

Create a directory to store the files. In this example, we save the files in /lumenvox.

mkdir /lumenvox && cd /lumenvox
mkdir docker-offline && cd docker-offline

# Add GPG key
sudo apt update
sudo apt install ca-certificates curl gnupg
sudo install -m 0755 -d /etc/apt/keyrings
curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo gpg --dearmor -o /etc/apt/keyrings/docker.gpg
sudo chmod a+r /etc/apt/keyrings/docker.gpg

# Setup the repository
echo \
  "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.gpg] https://download.docker.com/linux/ubuntu \
  $(. /etc/os-release && echo "$VERSION_CODENAME") stable" | \
  sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

# Install Docker Engine
sudo apt update
sudo apt install docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

# Run Docker without sudo
sudo usermod -aG docker $USER
newgrp docker

Download the Docker core components from https://download.docker.com/linux/ubuntu/dists

cd docker-offline
# Define the base URL for Ubuntu 24.04 (Noble)
BASE_URL="https://download.docker.com/linux/ubuntu/dists/noble/pool/stable/amd64/"

curl -LO "${BASE_URL}containerd.io_1.7.25-1_amd64.deb"
curl -LO "${BASE_URL}docker-ce_27.5.1-1~ubuntu.24.04~noble_amd64.deb"
curl -LO "${BASE_URL}docker-ce-cli_27.5.1-1~ubuntu.24.04~noble_amd64.deb"
curl -LO "${BASE_URL}docker-buildx-plugin_0.20.0-1~ubuntu.24.04~noble_amd64.deb"
curl -LO "${BASE_URL}docker-compose-plugin_2.32.4-1~ubuntu.24.04~noble_amd64.deb"

Kubernetes

Add the Kubernetes repository:

sudo apt install -y apt-transport-https ca-certificates curl
sudo curl -fsSL https://pkgs.k8s.io/core:/stable:/v1.33/deb/Release.key | sudo gpg --dearmor -o /etc/apt/keyrings/kubernetes-apt-keyring.gpg
echo 'deb [signed-by=/etc/apt/keyrings/kubernetes-apt-keyring.gpg] https://pkgs.k8s.io/core:/stable:/v1.33/deb/ /' | sudo tee /etc/apt/sources.list.d/kubernetes.list

Download Packages

Download the Kubernetes binaries and their necessary support tools into a local directory without installing them:

# Create and enter the staging directory
mkdir -p /lumenvox/k8s-offline && cd /lumenvox/k8s-offline

# Download packages and all required dependencies
sudo apt update
apt-get download kubelet kubeadm kubectl kubernetes-cni conntrack socat ebtables

Download Kubernetes Images

Download the required images for Kubernetes v1.33 and save them as .tar archives:

mkdir -p /lumenvox/k8s-images && cd /lumenvox/k8s-images

docker pull registry.k8s.io/kube-apiserver:v1.33.8
docker save registry.k8s.io/kube-apiserver:v1.33.8 > kube-apiserver:v1.33.8.tar

docker pull registry.k8s.io/kube-controller-manager:v1.33.8
docker save registry.k8s.io/kube-controller-manager:v1.33.8 > kube-controller-manager:v1.33.8.tar

docker pull registry.k8s.io/kube-scheduler:v1.33.8
docker save registry.k8s.io/kube-scheduler:v1.33.8 > kube-scheduler:v1.33.8.tar

docker pull registry.k8s.io/kube-proxy:v1.33.8
docker save registry.k8s.io/kube-proxy:v1.33.8 > kube-proxy:v1.33.8.tar

docker pull registry.k8s.io/coredns/coredns:v1.12.0
docker save registry.k8s.io/coredns/coredns:v1.12.0 > coredns:v1.12.0.tar

docker pull registry.k8s.io/pause:3.10
docker save registry.k8s.io/pause:3.10 > pause:3.10.tar

docker pull registry.k8s.io/etcd:3.5.24-0
docker save registry.k8s.io/etcd:3.5.24-0 > etcd:3.5.24-0.tar

Calico

Download the essential container images for the Calico CNI. These components are critical for establishing the Kubernetes pod network and managing inter-service communication.

mkdir -p /lumenvox/calico-offline && cd /lumenvox/calico-offline

# Download the installation manifest
curl -O https://raw.githubusercontent.com/projectcalico/calico/v3.27.0/manifests/calico.yaml

# List the image information
grep image: calico.yaml | awk '{print $2}' | sort -u

# Pull the required images and save them as .tar archives
docker pull docker.io/calico/cni:v3.27.0
docker save calico/cni:v3.27.0 > cni:v3.27.0.tar

docker pull docker.io/calico/kube-controllers:v3.27.0
docker save calico/kube-controllers:v3.27.0 > kube-controllers:v3.27.0.tar

docker pull docker.io/calico/node:v3.27.0
docker save calico/node:v3.27.0 > node:v3.27.0.tar

Crictl

Download and install the crictl utility. This tool is required for inspecting and managing your container runtime environment during installation.

mkdir -p /lumenvox/crictl-offline && cd /lumenvox/crictl-offline
curl -LO https://pkgs.k8s.io/core:/stable:/v1.33/deb/amd64/cri-tools_1.33.0-1.1_amd64.deb

Linkerd

Linkerd manages the complex networking between microservices in a Kubernetes environment.

mkdir -p /lumenvox/linkerd-offline && cd /lumenvox/linkerd-offline
curl -O https://assets.lumenvox.com/kubeadm/linkerd.tar
tar -xvf linkerd.tar

Helm

Download and initialize the Helm binary. Helm is the package manager used to install, upgrade, and configure the platform Kubernetes charts.

mkdir -p /lumenvox/helm-offline && cd /lumenvox/helm-offline
curl -O https://get.helm.sh/helm-v3.19.2-linux-amd64.tar.gz
tar -zxvf helm-v3.19.2-linux-amd64.tar.gz
sudo mv linux-amd64/helm /usr/local/bin/helm

Add the Helm Repository

helm repo add lumenvox https://lumenvox.github.io/helm-charts
helm repo update

Download Helm Charts

The following command creates a lumenvox folder in the current directory with all Helm charts:

helm fetch lumenvox/lumenvox --untar

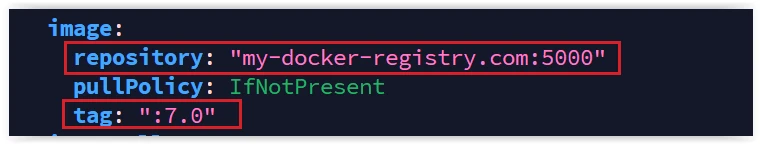

Open the lumenvox/values.yaml file and update the image repository settings to point to your private Docker registry. Ensure that the image tag matches the version you are deploying.

cd /lumenvox/helm-offline/lumenvox
vi values.yaml

Set the repository to your private registry (e.g., my-docker-registry.com:5000) and the appropriate tag (e.g., :7.0).

View full size

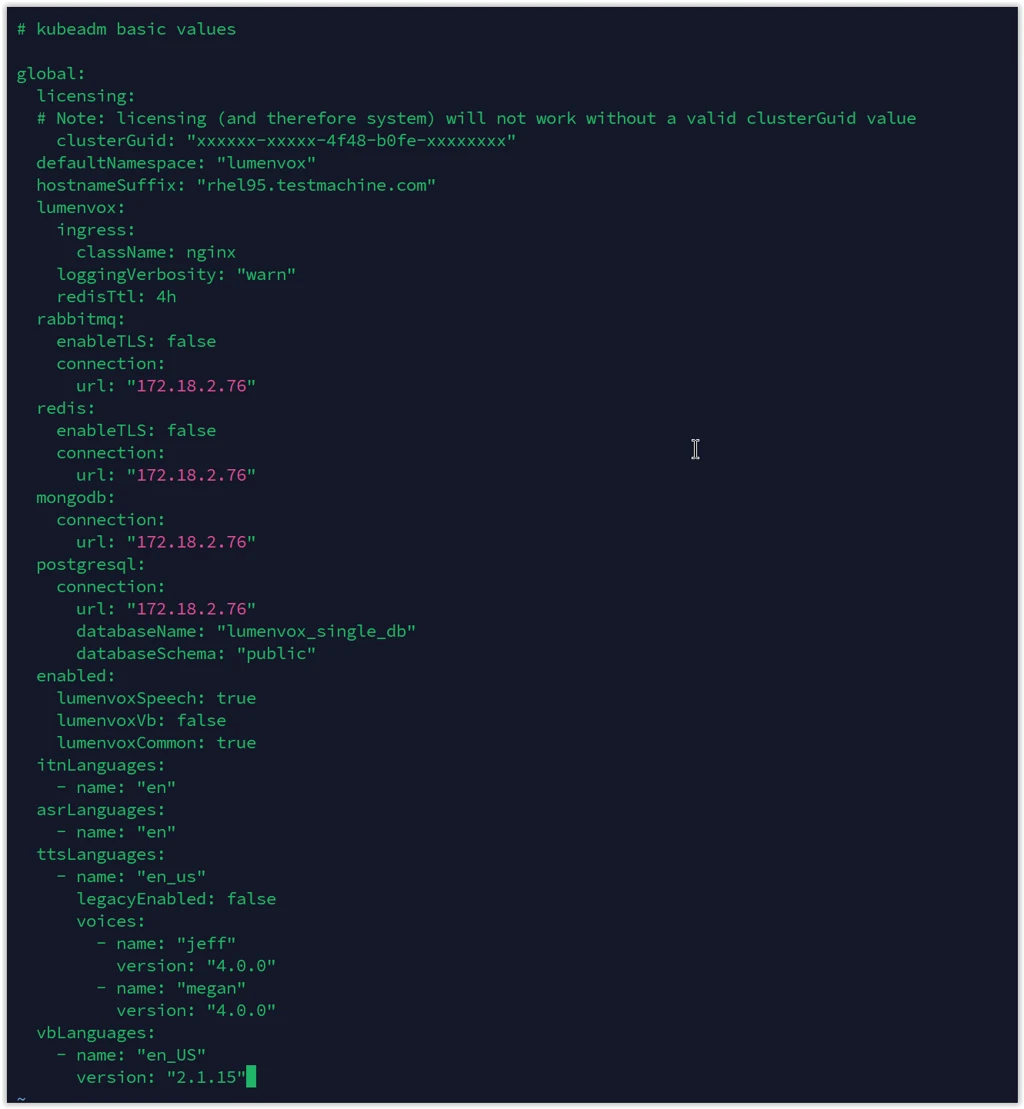

Alternatively, download the values.yaml from GitHub:

cd /lumenvox
curl -O https://raw.githubusercontent.com/lumenvox/containers-quick-start/master/values.yaml

Platform Images and External Services

Use the following script to pull and archive the platform and external service images. Save this script as download_lv_images.sh in the /lumenvox directory.

#!/bin/bash

IMAGES=(
  "lumenvox/admin-portal:7.0"
  "lumenvox/archive:7.0"
  "lumenvox/asr:7.0"
  "lumenvox/cloud-init-tools:7.0"
  "lumenvox/configuration:7.0"
  "lumenvox/deployment:7.0"
  "lumenvox/deployment-portal:7.0"
  "lumenvox/file-store:7.0"
  "lumenvox/grammar:7.0"
  "lumenvox/itn:7.0"
  "lumenvox/license:7.0"
  "lumenvox/lumenvox-api:7.0"
  "lumenvox/management-api:7.0"
  "lumenvox/neural-tts:7.0"
  "lumenvox/reporting-api:7.0"
  "lumenvox/resource:7.0"
  "lumenvox/session:7.0"
  "lumenvox/storage:7.0"
  "lumenvox/vad:7.0"
  "lumenvox/cloud-logging-sidecar:7.0"
  "lumenvox/mrcp-api:7.0"
  "lumenvox/simple_mrcp_client:latest"
  "lumenvox/diag-tools:jammy-4.2.0"
  "lumenvox/license-reporter-tool:latest"
  "docker.io/rabbitmq:4.1.8-management"
  "docker.io/redis:8.2.4-alpine"
  "docker.io/mongo:8.2"
  "docker.io/postgres:17.5"
)

SAVE_DIR="/lumenvox/lv_images-offline"
mkdir -p "$SAVE_DIR"

for IMAGE in "${IMAGES[@]}"; do
  echo "Processing: $IMAGE"
  if docker pull "$IMAGE"; then
    FILE_NAME=$(echo "$IMAGE" | tr '/:' '_')
    echo "Saving to $SAVE_DIR/${FILE_NAME}.tar"
    docker save -o "$SAVE_DIR/${FILE_NAME}.tar" "$IMAGE"
  else
    echo "ERROR: Failed to pull $IMAGE. Skipping..."
  fi
done

echo "Compressing all images into one bundle..."
tar czvf lv_images-offline.tar.gz -C /lumenvox lv_images-offline
echo "Done! Final bundle: lv_images-offline.tar.gz"

Model Files

Save the following script as download_lv_models.sh in the /lumenvox directory to download the required model files:

#!/bin/bash

DOWNLOAD_DIR="/lumenvox/lv_models-offline"
mkdir -p "$DOWNLOAD_DIR"

URLS=(
  "https://assets.lumenvox.com/model-files/asr/asr_decoder_model_en_gb-7.0.0.manifest"
  "https://assets.lumenvox.com/model-files/asr/asr_decoder_model_en_us-7.0.0.manifest"
  "https://assets.lumenvox.com/model-files/asr/asr_encoder_model_en-7.0.0.manifest"
  "https://assets.lumenvox.com/model-files/asr/asr_lang_model_en_us.manifest"
  "https://assets.lumenvox.com/model-files/asr/asr_lib_model_en_us.manifest"
  "https://assets.lumenvox.com/model-files/dnn/backend_dnn_model_7-7.0.0.manifest"
  "https://assets.lumenvox.com/model-files/dnn/backend_dnn_model_p.manifest"
  "https://assets.lumenvox.com/model-files/asr/dist_package_model_asr-7.0.0.manifest"
  "https://assets.lumenvox.com/model-files/dnn/dist_package_model_en.manifest"
  "https://assets.lumenvox.com/model-files/dnn/dist_package_model_itn-7.0.3.manifest"
  "https://assets.lumenvox.com/model-files/neural_tts/dist_package_model_neural_tts.manifest"
  "https://assets.lumenvox.com/model-files/itn/itn_dnn_model_en.manifest"
  "https://assets.lumenvox.com/model-files/asr/multilingual_confidence_model.manifest"
  "https://assets.lumenvox.com/model-files/neural_tts/neural_tts_en_us_aurora-8.manifest"
  "https://assets.lumenvox.com/model-files/neural_tts/neural_tts_en_us_caspian-8.manifest"
  "https://assets.lumenvox.com/model-files/nlu/nlu_model_en.manifest"
  "https://assets.lumenvox.com/model-files/tts/tts_base_lang_data.manifest"
  "https://assets.lumenvox.com/model-files/asr/1.0.0/asr_lib_model_en_us-1.0.0.tar.gz"
  "https://assets.lumenvox.com/model-files/asr/4.1.0/multilingual_confidence_model-4.1.0.tar.gz"
  "https://assets.lumenvox.com/model-files/asr/7.0.0/asr_decoder_model_en_gb-7.0.0.tar.gz"
  "https://assets.lumenvox.com/model-files/asr/7.0.0/asr_decoder_model_en_us-7.0.0.tar.gz"
  "https://assets.lumenvox.com/model-files/asr/7.0.0/asr_encoder_model_en-7.0.0.tar.gz"
  "https://assets.lumenvox.com/model-files/asr/7.0.0/dist_package_model_asr-7.0.0.tar.gz"
  "https://assets.lumenvox.com/model-files/asr/asr_lang_model_en_us.tar.gz"
  "https://assets.lumenvox.com/model-files/dnn/1.0.0/backend_dnn_model_p-1.0.0.tar.gz"
  "https://assets.lumenvox.com/model-files/dnn/1.0.3/dist_package_model_en-1.0.3.tar.gz"
  "https://assets.lumenvox.com/model-files/dnn/7.0.0/backend_dnn_model_7-7.0.0.tar.gz"
  "https://assets.lumenvox.com/model-files/dnn/7.0.3/dist_package_model_itn-7.0.3.tar.gz"
  "https://assets.lumenvox.com/model-files/itn/3.0.1/itn_dnn_model_en-3.0.1.tar.gz"
  "https://assets.lumenvox.com/model-files/neural_tts/2.0.0/dist_package_model_neural_tts-2.0.0.tar.gz"
  "https://assets.lumenvox.com/model-files/neural_tts/8.1.0/neural_tts_en_us_aurora-8.1.0.tar.gz"
  "https://assets.lumenvox.com/model-files/neural_tts/8.1.0/neural_tts_en_us_caspian-8.1.0.tar.gz"
  "https://assets.lumenvox.com/model-files/nlu/1.0.4/nlu_model_en-1.0.4.tar.gz"
  "https://assets.lumenvox.com/model-files/tts/tts_base_lang_data.tar.gz"
)

for URL in "${URLS[@]}"; do
  FILE_NAME=$(basename "$URL")
  echo "Downloading $FILE_NAME..."
  curl -fLo "${DOWNLOAD_DIR}/${FILE_NAME}" "$URL" || echo "Failed to download $URL"
done

echo "All downloads complete. Files are in: $DOWNLOAD_DIR"

Media Server and External Services

Download the external services, MRCP-API, and MRCP client:

mkdir -p /lumenvox/services-offline && cd /lumenvox/services-offline
git clone https://github.com/lumenvox/mrcp-api.git
git clone https://github.com/lumenvox/mrcp-client.git
git clone https://github.com/lumenvox/external-services.git

cd external-services
curl -O https://raw.githubusercontent.com/lumenvox/external-services/master/docker-compose.yaml
curl -O https://raw.githubusercontent.com/lumenvox/external-services/master/rabbitmq.conf
curl -O https://raw.githubusercontent.com/lumenvox/external-services/master/.env

Ingress-nginx

mkdir -p /lumenvox/ingress-nginx-offline && cd /lumenvox/ingress-nginx-offline
helm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx
helm fetch ingress-nginx/ingress-nginx --untar

docker pull registry.k8s.io/ingress-nginx/controller:v1.14.1
docker save registry.k8s.io/ingress-nginx/controller:v1.14.1 > controller:v1.14.1.tar

docker pull registry.k8s.io/ingress-nginx/kube-webhook-certgen:v1.5.2
docker save registry.k8s.io/ingress-nginx/kube-webhook-certgen:v1.5.2 > kube-webhook-certgen:v1.5.2.tar

Docker Private Registry

A Docker private registry is a container image server that your organization controls. Instead of pulling and pushing images to a public service like Docker Hub, you store them in your own registry, allowing only authorized users and systems to access them.

Set Up the Registry

cd /lumenvox/docker-offline
docker pull registry:2
docker save registry:2 -o registry.tar
mkdir -p registry/data
cd registry

Create a docker-compose.yaml file to map port 5000 and ensure your images are saved permanently:

sudo tee /lumenvox/docker-offline/registry/docker-compose.yaml <<EOF
services:
  registry:
    image: registry:2
    container_name: private-registry
    ports:
      - "5000:5000"
    volumes:
      - ./data:/var/lib/registry
    restart: always
EOF

Start the Docker registry:

docker compose up -d

Configure Insecure Registry

Docker, by default, refuses to push to a registry that doesn't use HTTPS. Add the following to /etc/docker/daemon.json:

sudo tee /etc/docker/daemon.json <<EOF
{
  "insecure-registries": ["my-docker-registry.com:5000"]
}
EOF

Reload and restart Docker:

sudo systemctl daemon-reload
sudo systemctl restart docker

Add an entry for my-docker-registry.com to the /etc/hosts file. Replace the IP address with the actual IP of the online server:

172.18.2.71 my-docker-registry.com

Tag and Push Images

Tag and push ingress-nginx to the local registry:

cd /lumenvox/ingress-nginx-offline
docker tag registry.k8s.io/ingress-nginx/controller:v1.14.1 my-docker-registry.com:5000/controller:v1.14.1
docker push my-docker-registry.com:5000/controller:v1.14.1

docker tag registry.k8s.io/ingress-nginx/kube-webhook-certgen:v1.5.2 my-docker-registry.com:5000/kube-webhook-certgen:v1.5.2
docker push my-docker-registry.com:5000/kube-webhook-certgen:v1.5.2

Confirm the images are in the private registry:

curl my-docker-registry.com:5000/v2/_catalog

The output should look similar to the following:

{"repositories":["controller","kube-webhook-certgen"]}

Use a script to tag and push all platform images. Save as load_push_local_registry.sh:

#!/bin/bash

REGISTRY="my-docker-registry.com:5000"
IMAGE_DIR="/lumenvox/lv_images-offline"
REGISTRY="${REGISTRY%/}"

for TAR in "$IMAGE_DIR"/*.tar; do
  echo "Processing $TAR..."
  IMAGE_FULL_NAME=$(docker load -i "$TAR" | awk '/Loaded image:/ { print $3 }')

  if [ -z "$IMAGE_FULL_NAME" ]; then
    echo "Error: Failed to extract image name from $TAR"
    continue
  fi

  echo "Found image: $IMAGE_FULL_NAME"
  CLEAN_NAME="${IMAGE_FULL_NAME#docker.io/}"
  CLEAN_NAME="${CLEAN_NAME#lumenvox/}"
  TARGET_IMAGE="${REGISTRY}/${CLEAN_NAME}"

  echo "Tagging as: $TARGET_IMAGE"
  docker tag "$IMAGE_FULL_NAME" "$TARGET_IMAGE"

  echo "Pushing: $TARGET_IMAGE"
  docker push "$TARGET_IMAGE"
done

echo "Done."

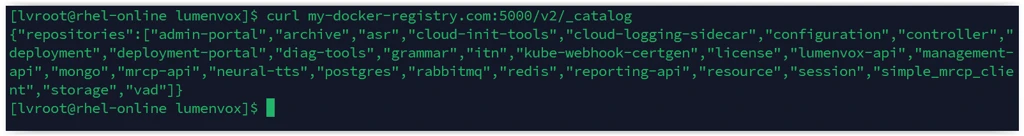

To list the content of the registry after pushing all images:

curl my-docker-registry.com:5000/v2/_catalog

The output should look similar to this:   View full size

Offline Server Preparation

System Prerequisites

Apply the same system prerequisites as the online server:

Disable Swap Space

sudo swapoff -a
sudo sed -i '/swap/ s/^\(.*\)$/#\1/g' /etc/fstab

Configure Kernel Modules

sudo tee /etc/modules-load.d/k8s.conf <<EOF
ip_tables
overlay
br_netfilter
EOF

sudo modprobe ip_tables
sudo modprobe overlay
sudo modprobe br_netfilter

Network & Security Settings

sudo tee /etc/sysctl.d/k8s.conf <<EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
EOF

sudo sysctl --system

sudo systemctl stop ufw
sudo systemctl disable ufw
sudo systemctl stop apparmor
sudo systemctl disable apparmor

Modify /etc/hosts

Add entries for the offline server and the private repository (hosted on the online server):

sudo vi /etc/hosts
172.18.2.72 ubuntu-offline
172.18.2.71 my-docker-registry.com

Copy Staging Files from Online Server

Use rsync to synchronize folders and files between servers:

sudo mkdir /lumenvox
rsync -avzP user@remote_host:/lumenvox/* /lumenvox/

View full size

Install Docker and Containerd

cd /lumenvox/docker-offline
sudo dpkg -i *.deb
sudo systemctl enable --now docker
sudo systemctl enable --now containerd

Configure Containerd for Private Registry

containerd config default | sudo tee /etc/containerd/config.toml
sudo sed -i 's/SystemdCgroup \= false/SystemdCgroup \= true/g' /etc/containerd/config.toml
sudo sed -i 's|sandbox_image = "registry.k8s.io/pause:3.8"|sandbox_image = "registry.k8s.io/pause:3.10"|g' /etc/containerd/config.toml
sudo sed -i '/\[plugins."io.containerd.grpc.v1.cri".registry\]/,/\[/ s|config_path = .*|config_path = "/etc/containerd/certs.d"|' /etc/containerd/config.toml

sudo mkdir -p /etc/containerd/certs.d/my-docker-registry.com:5000

cat <<EOF | sudo tee /etc/containerd/certs.d/my-docker-registry.com:5000/hosts.toml
server = "http://my-docker-registry.com:5000"

[host."http://my-docker-registry.com:5000"]
  capabilities = ["pull", "resolve"]
  skip_verify = true
EOF

sudo systemctl restart containerd
sudo usermod -aG docker $USER
newgrp docker

Configure Insecure Registries

sudo tee /etc/docker/daemon.json <<EOF
{
  "insecure-registries": ["my-docker-registry.com:5000"]
}
EOF
sudo systemctl restart docker

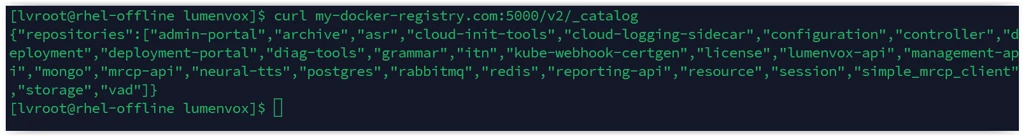

To List the Content of the private docker registry on the online server.

url my-docker-registry.com:5000/v2/_catalog

The output should look similar to this: View full size

Install Crictl

cd /lumenvox/crictl-offline
sudo dpkg -i cri-tools_1.33.0-1.1_amd64.deb
sudo crictl config --set runtime-endpoint=unix:///run/containerd/containerd.sock

 Install Kubernetes

cd /lumenvox/k8s-offline/
sudo dpkg -i *.deb
sudo systemctl enable --now containerd

Load Kubernetes Images

cd /lumenvox/k8s-images
sudo ctr -n k8s.io images import coredns:v1.12.0.tar
sudo ctr -n k8s.io images import etcd:3.5.24-0.tar
sudo ctr -n k8s.io images import kube-apiserver:v1.33.8.tar
sudo ctr -n k8s.io images import kube-controller-manager:v1.33.8.tar
sudo ctr -n k8s.io images import kube-proxy:v1.33.8.tar
sudo ctr -n k8s.io images import kube-scheduler:v1.33.8.tar
sudo ctr -n k8s.io images import pause:3.10.tar

Initialize the Control Plane

sudo kubeadm init --apiserver-advertise-address=172.18.2.72 --kubernetes-version=v1.33.8

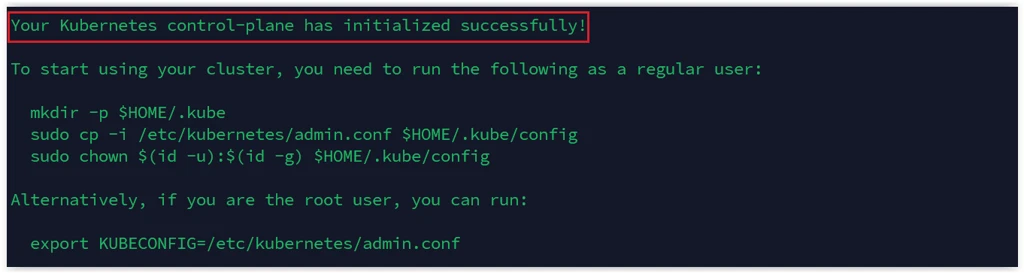

You should see the following output if the control plane initializes successfully (this may take up to 5 minutes):

View full size   Set up kubectl for the user:

mkdir -p $HOME/.kube
sudo cp /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

Untaint the node (replace <node-name> with your node name):

kubectl get node
kubectl taint node <node-name> node-role.kubernetes.io/control-plane-

Install Calico

cd /lumenvox/calico-offline
sudo ctr -n k8s.io images import kube-controllers:v3.27.0.tar
sudo ctr -n k8s.io images import node:v3.27.0.tar
sudo ctr -n k8s.io images import cni:v3.27.0.tar
kubectl apply -f calico.yaml

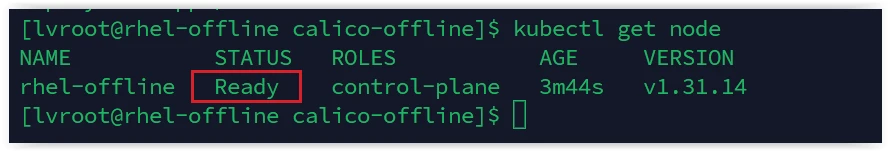

Verify the node is now in Ready status:

kubectl get node

The node should now be in Ready status  View full size

Install Linkerd

cd /lumenvox/linkerd-offline
sudo chmod +x linkerd_cli_installer_offline.sh
sudo ctr -n k8s.io images import controller:edge-24.8.2.tar
sudo ctr -n k8s.io images import metrics-api:edge-24.8.2.tar
sudo ctr -n k8s.io images import policy-controller:edge-24.8.2.tar
sudo ctr -n k8s.io images import prometheus:v2.48.1.tar
sudo ctr -n k8s.io images import proxy:edge-24.8.2.tar
sudo ctr -n k8s.io images import proxy-init:v2.4.1.tar
sudo ctr -n k8s.io images import tap:edge-24.8.2.tar
sudo ctr -n k8s.io images import web:edge-24.8.2.tar

./linkerd_cli_installer_offline.sh
export PATH=$PATH:~/.linkerd2/bin
linkerd check --pre
linkerd install --crds | kubectl apply -f -
linkerd install | kubectl apply -f -
linkerd check
linkerd viz install | kubectl apply -f -
kubectl delete cronjob linkerd-heartbeat -n linkerd

Install Helm

cd /lumenvox/helm-offline
tar -zxvf helm-v3.19.2-linux-amd64.tar.gz
sudo mv linux-amd64/helm /usr/local/bin/helm

Platform and External Services Installation

Create the Namespace

kubectl create ns lumenvox

Configure External Services

Copy the external-services folder and update the docker-compose.yaml to point to your private registry:

cp -r /lumenvox/services-offline/external-services/ ~
cd ~/external-services
vi docker-compose.yaml

Update the image tags:

### mongodb
image: my-docker-registry.com:5000/mongo:8.2

### postgresql
image: my-docker-registry.com:5000/postgres:17.5

### rabbitmq
image: my-docker-registry.com:5000/rabbitmq:4.1.8-management

### redis
image: my-docker-registry.com:5000/redis:8.2.4-alpine

Update the .env file with your credentials:

vi .env

#-------------------------#
# MongoDB Configuration
#-------------------------#
MONGO_INITDB_ROOT_USERNAME=lvuser
MONGO_INITDB_ROOT_PASSWORD=mongo1234

#-------------------------#
# PostgreSQL Configuration
#-------------------------#
POSTGRES_USER=lvuser
POSTGRES_PASSWORD=postgres1234

#-------------------------#
# RabbitMQ Configuration
#-------------------------#
RABBITMQ_USERNAME=lvuser
RABBITMQ_PASSWORD=rabbit1234

#-------------------------#
# Redis Configuration
#-------------------------#
REDIS_PASSWORD=redis1234

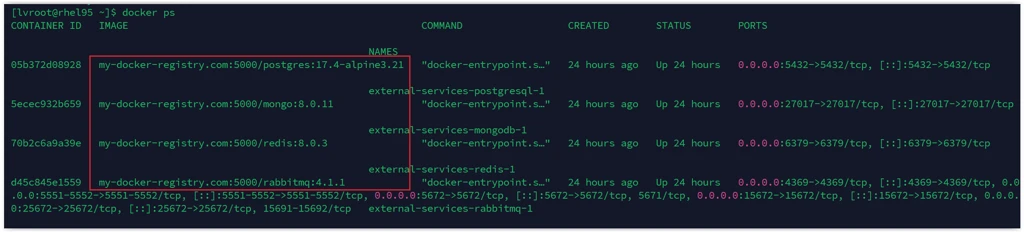

Start the external services & check if they are running:

docker compose up -d
docker ps

View full size
Create Kubernetes Secrets

Replace the $PASSWORD placeholders with the actual values from your .env file:

kubectl create secret generic mongodb-existing-secret --from-literal=mongodb-root-password=$MONGO_INITDB_ROOT_PASSWORD -n lumenvox
kubectl create secret generic postgres-existing-secret --from-literal=postgresql-password=$POSTGRES_PASSWORD -n lumenvox
kubectl create secret generic rabbitmq-existing-secret --from-literal=rabbitmq-password=$RABBITMQ_PASSWORD -n lumenvox
kubectl create secret generic redis-existing-secret --from-literal=redis-password=$REDIS_PASSWORD -n lumenvox

Configure values.yaml

Edit the values.yaml with your clusterGUID, IP address of the external services, ASR language(s), and TTS voice(s):

cd /lumenvox
vi values.yaml

View full size
Create TLS Certificates

Create the certificate key:

openssl genrsa -out server.key 2048

Create the certificate. Ensure the subjectAltName matches the hostnameSuffix in your values.yaml file:

openssl req -new -x509 -sha256 -key server.key -out server.crt -days 3650 \
  -addext "subjectAltName = DNS:lumenvox-api.ubuntu12.testmachine.com, \
  DNS:biometric-api.lumenvox-api.ubuntu12.testmachine.com, \
  DNS:management-api.lumenvox-api.ubuntu12.testmachine.com, \
  DNS:reporting-api.lumenvox-api.ubuntu12.testmachine.com, \
  DNS:admin-portal.lumenvox-api.ubuntu12.testmachine.com, \
  DNS:deployment-portal.lumenvox-api.ubuntu12.testmachine.com"

Create the speech-tls-secret:

cd /lumenvox
kubectl create secret tls speech-tls-secret --key server.key --cert server.crt -n lumenvox

Install the Platform

cd /lumenvox
helm install lumenvox helm-offline/lumenvox -n lumenvox -f values.yaml

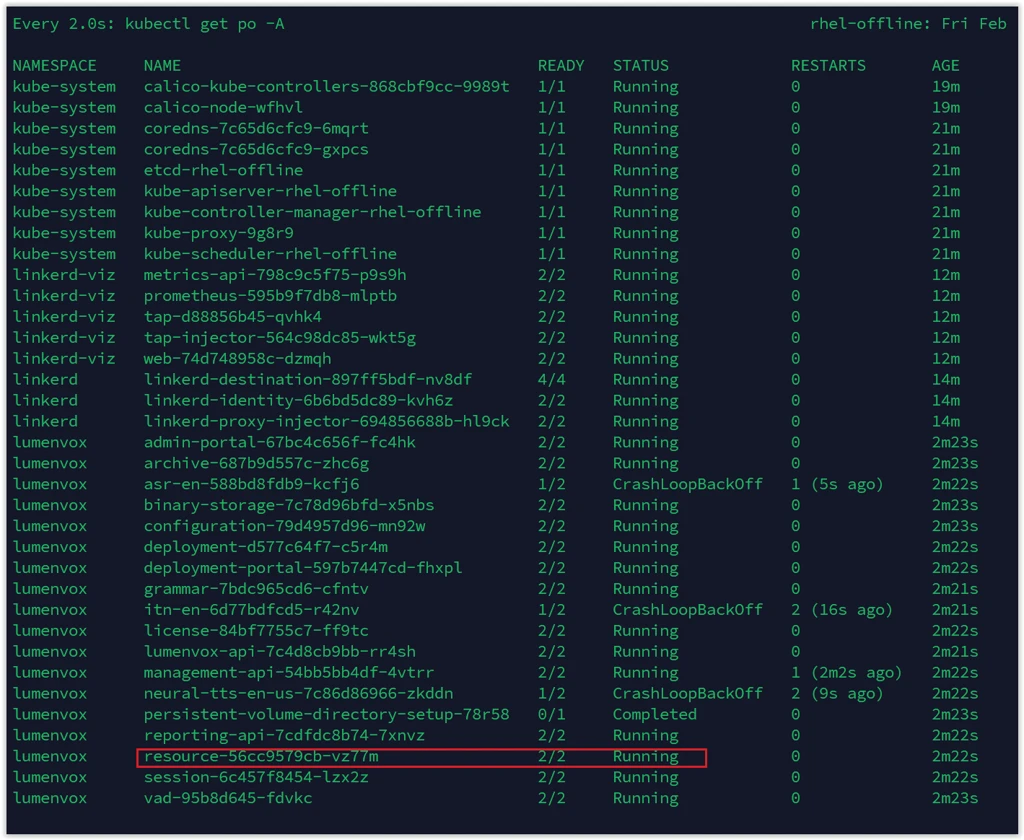

watch kubectl get po -A

View full size
Load Model Files

First, reinstall to set proper permissions for the /data directory:

helm uninstall lumenvox -n lumenvox
helm install lumenvox helm-offline/lumenvox -n lumenvox -f values.yaml

Copy the manifest files to /data/lang/manifests:

cd /lumenvox/lv_models-offline
cp -p *.manifest /data/lang/manifests/

Copy the model archives to /data/lang/downloads:

cd /lumenvox/lv_models-offline
cp -p *.tar.gz /data/lang/downloads/

Restart the deployment:

kubectl rollout restart deployment -n lumenvox

All pods should now be running:

Ingress-nginx Installation

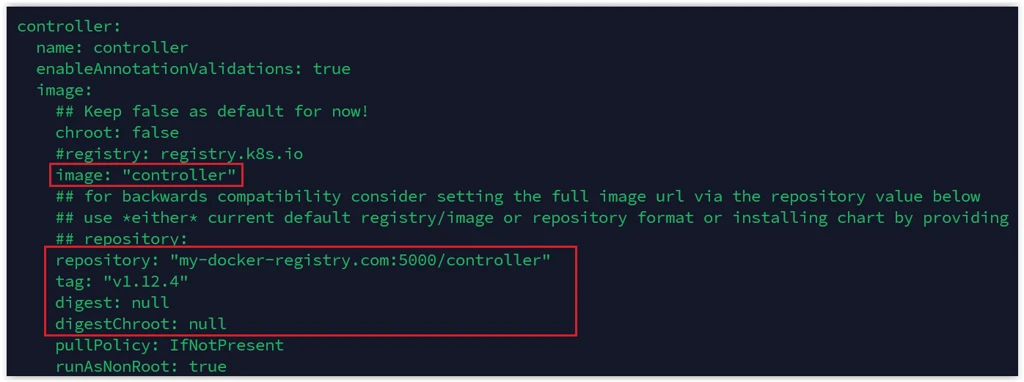

Configure ingress-nginx to pull from your private Docker repository:

cd /lumenvox/ingress-nginx-offline
vi ingress-nginx/values.yaml

Search for "controller" and set:

• image: "controller"
• repository: "my-docker-registry.com:5000/controller"
• tag: "v1.14.1"
• digest: null
• digestChroot: null View full size  Search for "kube-webhook" and set:
• image: "kube-webhook-certgen"
• repository: "my-docker-registry.com:5000/kube-webhook-certgen"
• tag: "v1.5.2"
• digest: null View full size

Search for "hostNetwork" and set it to true: View full size  Install ingress-nginx:

helm upgrade --install ingress-nginx ./ingress-nginx -n ingress-nginx --create-namespace --set controller.hostNetwork=true --version 4.14.1 -f ./ingress-nginx/values.yaml

MRCP-API Installation

Move the mrcp-api to your home directory and configure Docker to pull from your private registry:

cd /lumenvox/services-offline/
cp -r mrcp-api ~
cd ~/mrcp-api/docker/
vi .env

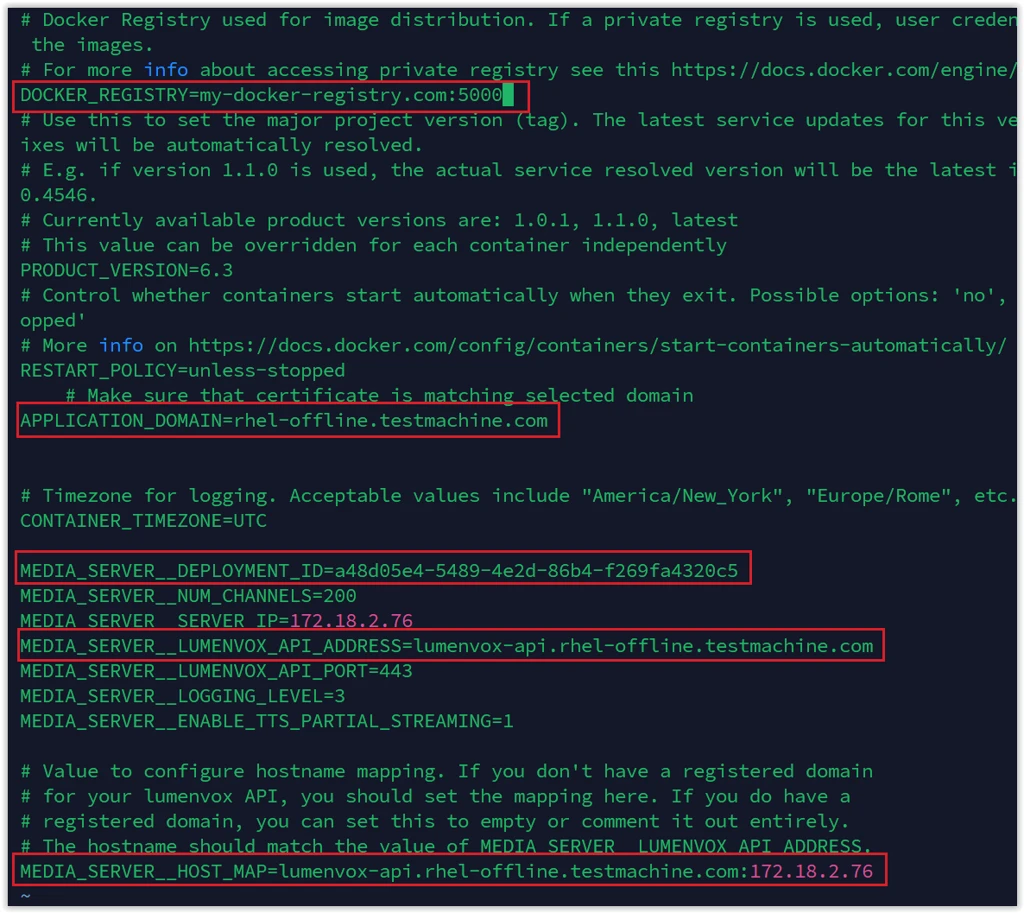

Set DOCKER_REGISTRY=my-docker-registry.com:5000/   View full size  Copy the certificate and start the service:

cd ~/mrcp-api/docker
docker compose down
sudo cp /lumenvox/server.crt certs
docker compose up -d

MRCP-Client Installation

Move the mrcp-client to your home directory and configure Docker:

cd /lumenvox/services-offline/
cp -r mrcp-client ~
cd ~/mrcp-client

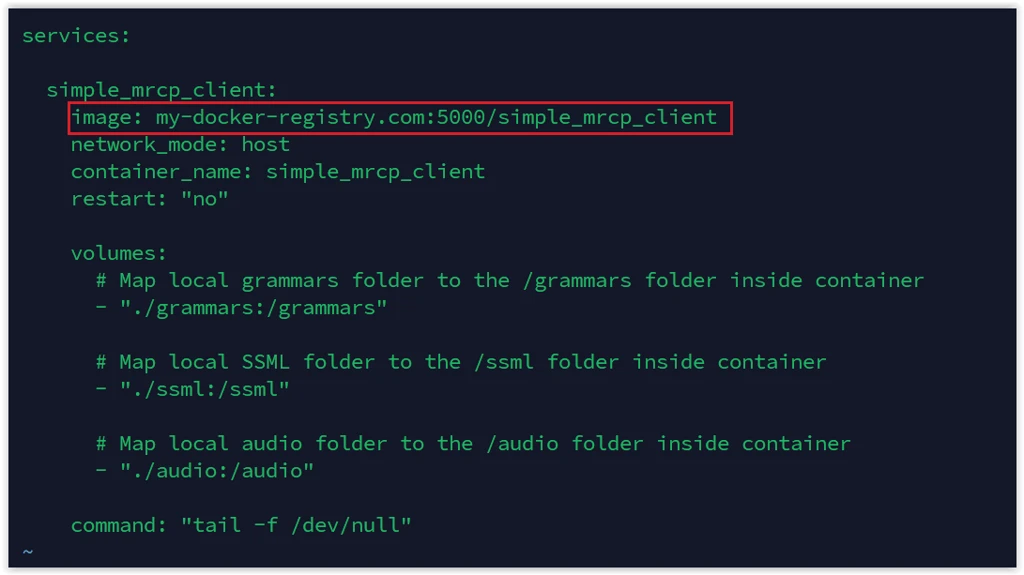

vi docker-compose.yml

Set the image to my-docker-registry.com:5000/simple_mrcp_client

docker compose up -d

View full size

Next Steps

• Creating a deployment: See the Setup via quick start (kubeadm) guide for instructions on accessing the Admin Portal to create a deployment.
• Licensing the server: See Setting up the license reporter tool to license a server in an air-gapped environment.
